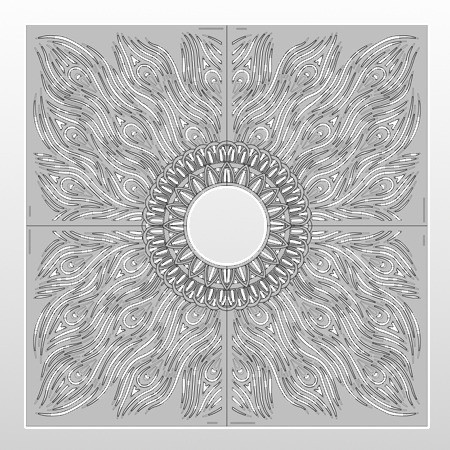

Introduced in 2004, the Pavone tree grate is patterned after the whorls of a peacock feather, and is one of our most dramatic and graphically intense designs.
Installations of interest include the Cedar Rapids Aiport and the use of the grate as a baptismal font cover in the Immanual Lutheran Church of Valparaiso, Indiana
Conforms to ADA Accessibility Guidelines
AVAILABLE SIZES
| Square | ||||||
| 4' | DWG | | | 5' | DWG | ||
GENERAL SPECIFICATION LINKS
Installation Frame Information
Material and Finish Options
Powder Coat Color Chart
Lightport Worksheet - Add uplighting to any tree grate
Generic CSI Specification
AVAILABLE MATERIALS
100% Recycled Grey Iron ǂ, per ASTM A48 class 35b
Ductile Iron, per ASTM A536, class 65-45-12
100% Recycled Aluminum, per ASTM B26
Silicon Bronze, per ASTM B26
Nickel Bronze, per ASTM B30
Recycled Content and Origin of Materials Affidavit
AVAILABLE FINISHES
Raw Natural Finish ǂ
Rust Conditioner - Grey and Ductile Iron Only - Additional Information
Polyester Powder Coat - Standard color options
Liquid Coat - Available upon request - Please provide paint color number, system number and manufacturer.
Brush - Aluminum, Bronze and Nickel Bronze Only
Polish - Aluminum, Bronze and Nickel Bronze Only
ǂ Standard
